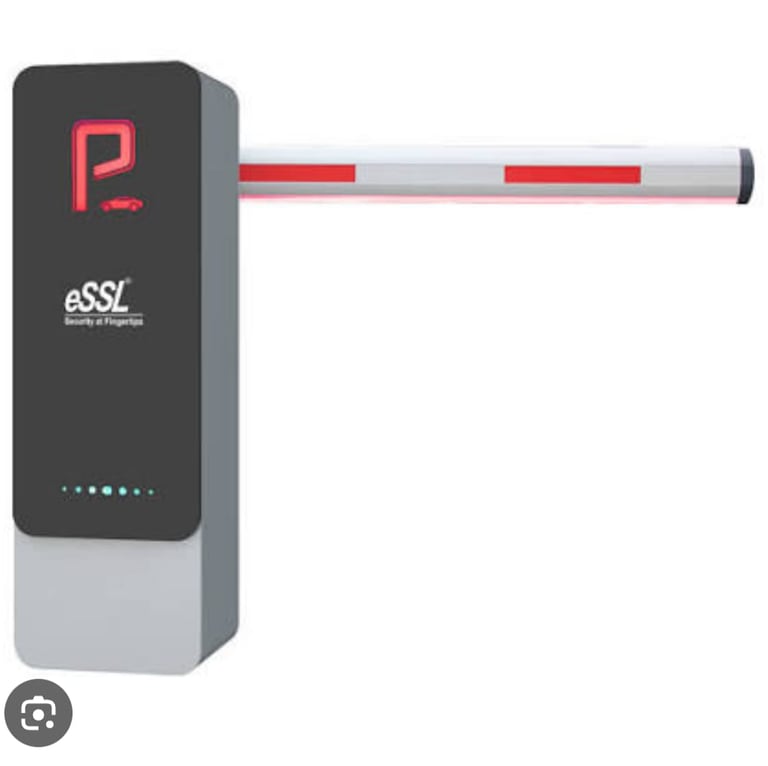

S-BB100 – Automatic Boom Barrier with 4m-6m Retractable ArmServices
Description
Automatic Boom Barrier (4mts-6mts retractable Arm)
Model No
S-BB100
Key Features
Maximum Boom Length up to 6mtr (With Retraceable Feature)
Aluminium Boom in 75/80mm OD
Opening Time: 3-6 Second
Power Supply: 230V
With IP55 protection grade
Duty Cycle 100%
Operating Temp:-10°C to +60°C
Colour RAL2002Description
Automatic Boom Barrier (4mts-6mts retractable Arm)
Model No
S-BB100
Key Features
Maximum Boom Length up to 6mtr (With Retraceable Feature)
Aluminium Boom in 75/80mm OD
Opening Time: 3-6 Second
Power Supply: 230V
With IP55 protection grade
Duty Cycle 100%
Operating Temp:-10°C to +60°C
Colour RAL2002

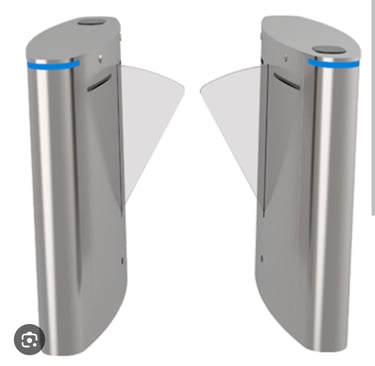

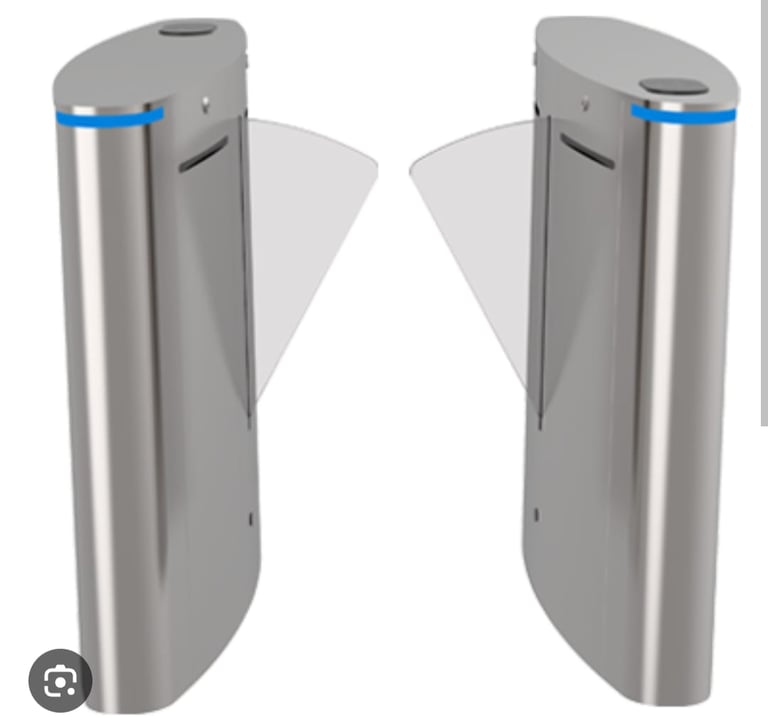

FB-E-1000 Single Lane Flap Barrier
Category:Flap Barriers
Features:
Material : 2.0mm SUS304 ,
Size : 1200*280*980mm,
Sensor pairs : 3 pairs,
Pass rate : 35p/m .
Specifications
Technical Specifications
Material : 2.0mm SUS304
Size : 1200*280*980mm
Sensor pairs : 3 pairs
Pass rate : 35p/m
Pass width : 550mm
Input voltage : 100V~240V
Motor type : DC brushless motor
Environment : -20~+70℃
Power supply : 24V 150W
Net weight : 45kg
IP Rating : 56
MCBF : 5 Million
Follo
Services
Features
1.Reasonable and reliable design, low noise, smooth operation and long service life;
2.With function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
3.With functions of anti-tail, anti-reverse pass and so on;
4.Card can be set "with memory" or "without memory" functions;
5.With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
6.With infrared anti-clip function (anti-clip when gate is open or running);
7.Compatible with IC, ID card, scanning and face recognition, etc.
8.Two modes of operation are available: open or closed.
9.Various working modes are available, including two-way card reading and one-way card reading, etc.
Follo
Services

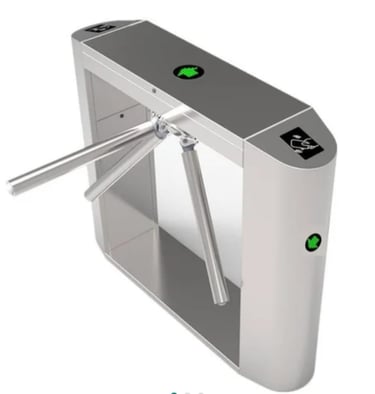

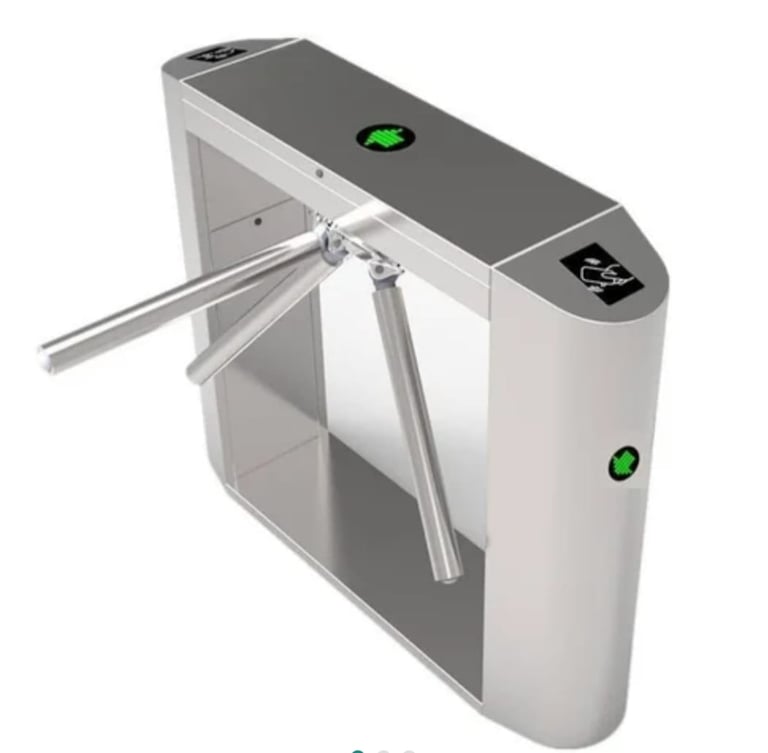

ET-1000 Heavy Duty Tripod Turnstile
Category:Turnstiles
Features:
Passage width : 520mm ,
Throughput rate : 35 p/m,
Electro - magnetic drive : DC,
Net weight including bar : 44
Technical Specifications
Passage width : 520mm
Throughput rate : 35 p/m
Power supply : 100 ~ 240V
Operational voltage : 24V
Max power consumption : 30 W
Frequency : 50 ~ 60hz
Protection level : IP44
Working temperature : -25°C ~ +70°C
Electro - magnetic drive : DC
Dimension excluding bar (in mm) : (L)480 x (W)280 x (H)980
Net weight including bar : 44kg
MCBF : 5 Million
Features
Semi-Auto mode
Pure mechanical mode
Single or Bi-directional function in mechanical and electrical versions
Automatic reset of barrier arms after each passage
Adjustable time out delay
Reader
RFID : Yes | Fingerprint : Yes
Protocol : RS485 / Mifare/Proxy (Optional) : Yes
Secondary Controller
Users : 30000 (RFID)
Fingerprint : 3000
Transaction storage : 100000
Integrated Controller : inbio-260
Relay : 12 V relay for lock
Support Fire Alarm : Yes
Reliable biometric systems for accurate time tracking.
Service Support
Expert installation and ongoing maintenance to keep your biometric and barrier systems running flawlessly.
php techsmart's biometric system made attendance tracking effortless and accurate for our office.
Raj M.
The boom barrier installation was quick, and the service team was very responsive and helpful.
Anita K.
